How to measure glass size for replacement?

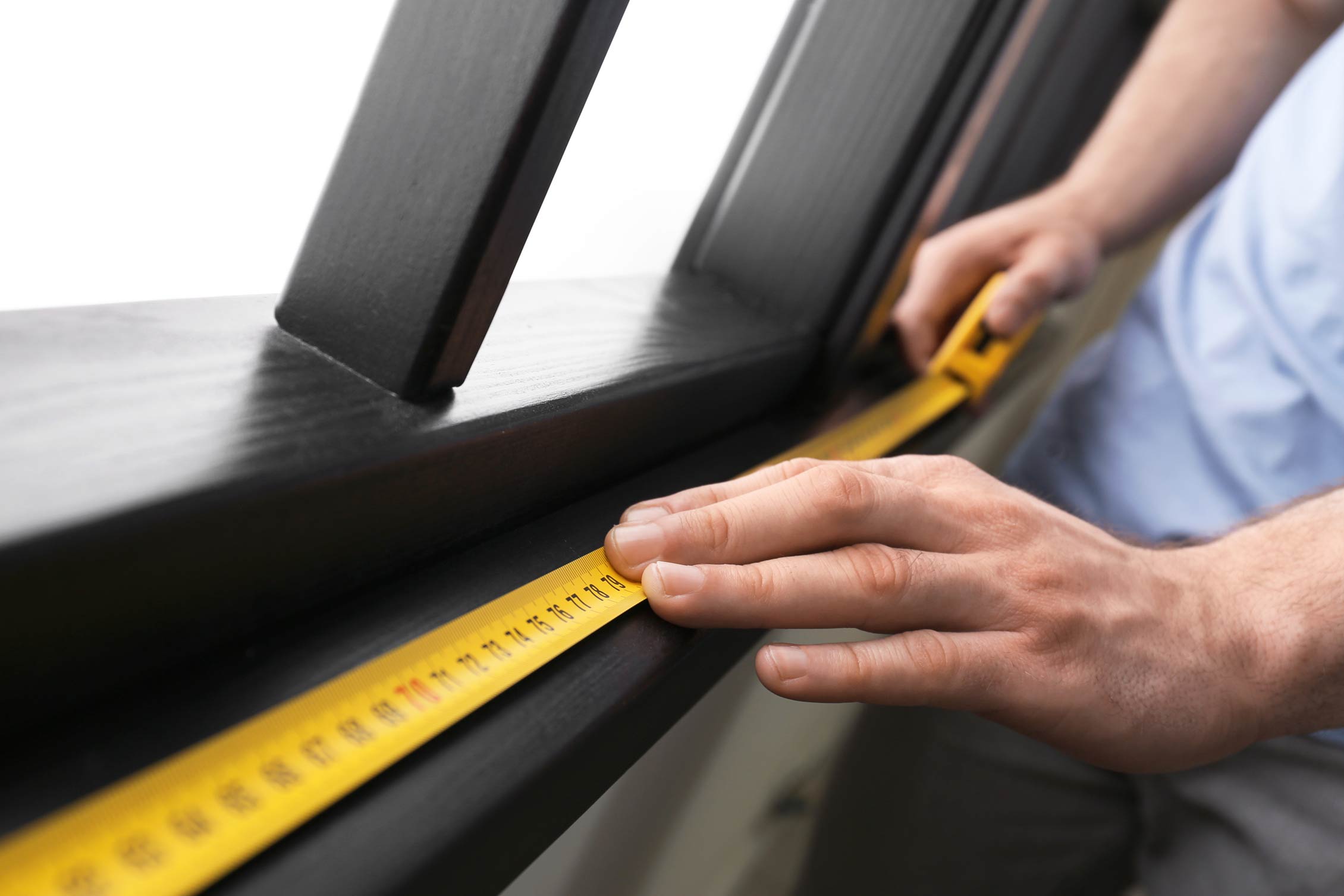

1. Measure the height of the glass from the top edge of the top beading to the bottom edge of the bottom beading and minus 10mm from the size to give you the final glass height.
2. Measure the width of the glass from the left edge of the left beading to the right edge of the right beading and minus 10mm from the size to give you the final glass width.
This measurements are only for using our price calculator to work out the cost for retrofitting C.U.in in your home today without an installer.
How to calculate thickness of your glazing?
1. Measure the inside distance of the edge of the frame to the glass. e.g. 21mm
2. Measure the outside distance of the edge of the frame to the glass. eg. 15mm
3. Add the two above values together. e.g. 21mm + 15mm = 36mm
4. Measure the thickness of the frame from inside to outside. e.g. 60mm
5. Minus the value from step 3 from the thickness measurement from step 4 to calculate the thickness of your glazing unit. e.g. 60mm – 36mm = 24mm
